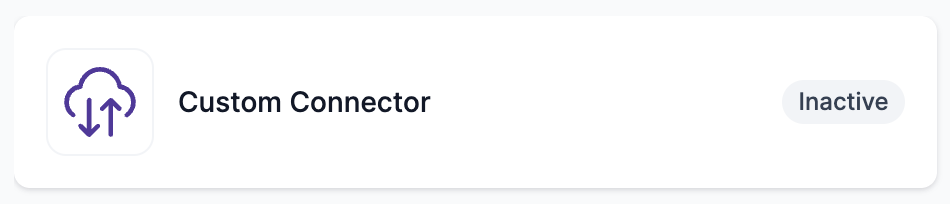

Custom Connector

Connect any custom data sources using custom APIs and webhooks

The Custom Connector feature allows you to bring data from any external API or Webhook into the Lifesight platform. This enables you to integrate platforms and systems that are not available as pre-built Lifesight integrations.

With Custom Connectors, you can:

  1. Configure APIs and Webhooks under a single connector.
  2. Add multiple APIs and Webhooks for a single connector.
  3. Reuse the same process to create new connectors for different platforms.
  4. Change or update configurations at any time.
  5. Trigger an on-demand fetch of data by clicking the Run (▶️ play) button.

This provides full flexibility to integrate your proprietary or third-party systems with Lifesight, ensuring complete visibility into your marketing and business data.

Key Capabilities

APIs & Webhooks Support Add one or more API endpoints and/or Webhook URLs to fetch or receive data into Lifesight.

Multiple Configurations per Connector Each connector can hold multiple APIs and Webhooks simultaneously, giving you flexibility in managing data ingestion.

Editable Configurations Modify, update, or extend configurations whenever requirements change, without creating a new connector.

Run on Demand Once configured, click the Run (▶️) button to trigger immediate data fetch from the API.

Scalable To integrate another platform, simply repeat the connector creation process and set up new APIs/Webhooks.


Quick start guide

  1. Create connector → Name & describe it.
  2. Add API → Define base URL, auth, an endpoint, and response mapping → Test → Save.
  3. (Optional) Add more APIs to the same connector.
  4. Add Webhook → Generate URL or paste the callback URL, set verification, map payload → Test → Save.
  5. Run (▶︎) an API to fetch data and verify logs/preview.
  6. Publish/Enable the connector for ongoing use.

Detailed setup guide

1. Start a new connector

  1. Go to Connectors → Custom Connector.
  2. Click New Connector.
  3. Enter a Connector Name (e.g., “Support API + Webhooks”).
  4. [Optional] Add a Description (purpose, data types, owners).
  5. Click Create (or Save).

2) Configure authentication (connector-level or per endpoint)

Choose how the connector authenticates with your API provider. Common options:

  • No Auth — public endpoints.
  • API Key (Header or Query) — provide key and location (e.g., header Authorization: Api-Key <key> or query ?api_key=<key>).
  • Bearer Token — Authorization: Bearer <token>.
  • Basic Auth — username/password.
  • OAuth 2.0 — provide client ID/secret, scopes, auth/token URLs; complete authorization.

Tip: If authentication differs per endpoint, you can override it when defining an individual API.

3. Add your first API endpoint

  1. In the connector, click Add API.
  2. General
    • Name the endpoint (e.g., “List Tickets”).
    • Base URL (e.g., https://api.example.com), then set the Path (e.g., /v1/tickets).
    • HTTP Method: GET, POST, PUT, PATCH, DELETE.
    • (Optional) Headers and Query Params (e.g., Accept: application/json, status=open), and Path Params if needed.
  3. Authentication (if not inherited)
    • Select the auth type for this endpoint and provide credentials.
  4. Request Body (for POST/PUT/PATCH)
    • Choose content type (e.g., JSON) and define the body template. You can add variables and test values.
  5. Pagination (if the API is paginated)
    • Choose the pagination mode: Cursor/Token, Page/Per-Page, or Offset/Limit.
    • Provide the parameter names and (if cursor) the path to the next token in the response.
  6. Rate Limiting (optional)
    • Define requests/second or per minute; configure retries/backoff.
  7. Response Mapping
    • Select JSON as the response type (if applicable).
    • Set the root path to the list/records array (e.g., data.items).
    • Map fields from the response to output columns (e.g., id, title, created_at, status).
    • (Optional) Cast types, parse timestamps, and flatten nested objects.
  8. Test
    • Click Test to execute once. Review HTTP status, sample payload, and mapped preview.
    • Fix any mapping/auth issues and retest until green.
  9. Save the API endpoint.

4) Add more APIs to the same connector (optional)

  • Repeat Add API for additional endpoints (e.g., “Get Ticket by ID”, “List Users”, “List Comments”).
  • Each endpoint can have its own method, path, params, pagination, and mapping.

5. Add a Webhook

  1. Click Add Webhook.
  2. Webhook URL
    • If Lifesight generates a unique URL, copy it and register it in your source system, or
    • If the UI expects your callback URL, paste it here (depending on your architecture).
  3. Verification / Signing (recommended)
    • Choose verification type (e.g., secret token in header, HMAC signature, basic auth). Provide the secret or public key.
  4. Events (optional)
    • Select which event types to accept (e.g., ticket.created, ticket.updated).
  5. Payload Mapping
    • Provide a sample payload or use a captured event to map fields to output columns.
    • (Optional) Add filters to accept/ignore certain events.
  6. Test
    • Use the provider’s test delivery (or send a curl request) to trigger a sample webhook.
    • Confirm the request is received, validated, and mapped.
  7. Save the webhook.

6) Choose destination / output

  • Pick the dataset/table or destination collection where API and webhook data will land.
  • Confirm schemas for each mapped endpoint/webhook align with your analytics/modeling needs.

7. Run and verify

  1. On any configured API endpoint, click Run (▶︎ play) to fetch data immediately.
  2. Check the Run Logs and Preview to confirm records and field mappings.
  3. If required, tweak params/mappings, re-Run, and validate again.

8) Enable & monitor

  1. Enable the connector (and any schedules, if scheduling is available in your plan/tenant).
  2. Use Logs / History to monitor status, volumes, and errors.
  3. Re-Run on demand for ad-hoc fetches.

Editing configurations later

  • You can change any configuration at the connector, API, or webhook level (auth, paths, params, mappings, pagination, verification).
  • After changes, use Run to re-fetch and validate.
  • Changes take effect for subsequent runs and incoming webhooks.

Examples

Example A — GET with page/per-page pagination

  • Method: GET
  • Path: /v1/tickets
  • Query: page=1, per_page=100, status=open
  • Pagination: Page/Per-Page; next page = page + 1 until response array is empty or has_more=false.
  • Mapping Root: data
  • Fields: id, subject, created_at, status, assignee.id as assignee_id

Example B — GET with cursor pagination

  • Method: GET
  • Path: /v1/events
  • Query: limit=500, cursor={{cursor}}
  • Pagination: Cursor; next token path: meta.next_cursor
  • Mapping Root: events

Example C — POST with JSON body

  • Method: POST
  • Path: /v1/search
  • Headers: Content-Type: application/json
  • Body: { "query": "status:open created_at:>2025-01-01" }
  • Mapping Root: results.items
